Power Packs

Shimadzu Power Pack is an integration of small gear pumps (YP10), electric motors, oil tank, valves and other accessories in a compact package. Shimadzu Power Packs are widely used as great hydraulic power source for specially-equipped vehicles, agricultural machinery and lift devices.

Lineup

AU

AU Series

 Rated pressure  206 bar / 2,987 psi
 Pump size  0.8 ~ 7 cm3 / 0.05 ~ 0.43 in3
 Motor power  0.4 ~ 2.2 kW (3 phase 200 V)
   Relief valve and check valve are available

AU series Catalogue(PDF : 5.2MB)

PPL

PPL Series

 Rated pressure  172 bar / 2,494 psi
 Pump size  0.8 ~ 7 cm3 / 0.05 ~ 0.43 in3
 Tank size  1 ~ 4 L / 0.26 ~ 1.06 gal
   3rd bearing equipped for radial road

PPL series Catalogue(PDF : 4.9MB)

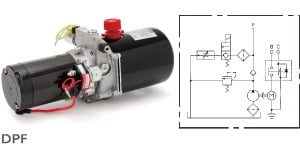

DPF

DPF Series

 Rated pressure  206 bar / 2,987 psi
 Pump size  0.8 ~ 7 cm3 / 0.05 ~ 0.43 in3
 Tank size  1 ~ 11 L / 0.26 ~ 2.91 gal
 Motor power  0.7 ~ 1.7 kW (12/24 V)
   Silent relief valve is available

DPF series Catalogue(PDF : 4.8MB)

PWPM

PWPM Series

 Rated pressure  206 bar / 2,987 psi
 Pump size  1 ~ 2.5 cm3 / 0.06 ~ 0.15 in3
 Tank size  2 ~ 3 L / 0.53 ~ 0.79 gal
 Motor power  1.2 ~ 2.0 kW (12/24 V)
   Steel cover to shut off the noise and water

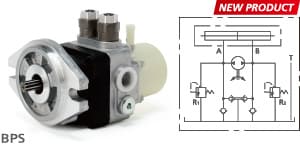

BPS

BPS Series

 Rated pressure  88 bar / 1,276 psi
 Pump size  3 ~ 7 cm3 / 0.19 ~ 0.43 in3
 Tank size  0.2 L / 0.05 gal
   Compact electro-hydraulic steering system

This page may contain references to products that are not available in your country. Please contact us to check the availability of these products in your country.
