Diffraction Gratings

Plane Blazed Holographic Gratings

Standard Plane Blazed Holographic Gratings

Diffraction Gratings

Features

  1. The grating grooves are formed by a holographic exposure method where the two-laser-beam-interference technology is applied. This holographic method lowers groove's periodical error commonly found in mechanically ruled gratings and ensures that the low stray light gratings can be produced.
  2. Blaze angle is formed by an ion-beam etching technology , which easily makes blazed holographic gratings with various angles (blaze wavelengths).
  3. High groove density and high resolution gratings can be manufactured easily and at competitive price.

RoHS* compliant products.

*RoHS:Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic

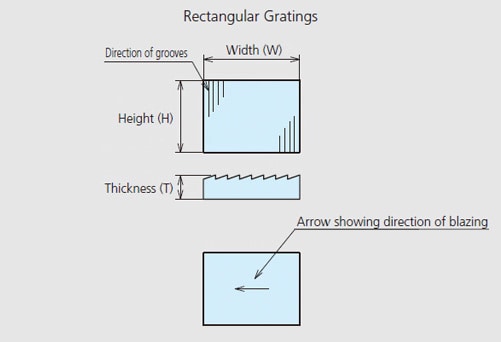

Shape of Plane GratingsShape of Plane Gratings

Shape of Plane Gratings

Standard Specifications

Grating Type Equally spaced straight-groove replica trating *1
Blank material Soda glass
Dimensional tolerances*2
Width(W) and hegiht (H) of rectangular blanks
Diameter(Φ) of round blanks
Thickness(T)

±0.2mm
0/0.2mm
±0.5mm
Effective area Total area less a 2mm strip around the perimeter
Groove density tolerance ±0.5 grooves/mm
Relative Diffraction efficiency at Blaze wavelength λ(Litt)*3 55% min.
Diffraction wavefront accuracy (λ=632.8nm, first-order light) Within2λ
Coating (vacuum evaporation) Aluminum (Aℓ)
Scratches and digs 80-50 (in accordance with MIL-O-13830A)

Open the table in a new window.

*1 : The grating grooves are formed with resin.
*2 : The (T)3mm product has the edge chipping because it has cut it with the dicing equipment.
*3 : Nominal blaze wavelength λB(Litt) is the wavelength of the maximum diffraction efficiency with the design in littrow mounting. No one to guarantee the wavelength of the maximum diffraction efficiency.

The external appearances and specifications are subject to change without notice.
Be sure to prevent condensation as this can cause a significant deterioration of optical characteristics.

Special Specifications

1 When you need special plane gratings other than our standard, please contact us or let us know by the following Request Form.
2 Holographic gratings (HG) can also be manufactured.
