Diffraction Gratings

Laminar Gratings for Soft X-ray Region

Applying holographic exposure method and ion-beam etching technology, Shimadzu has developed laminar gratings for spectroscopy in a range from the vacuum ultraviolet region to the soft X-ray region. These gratings have grooves with a rectangular profile, which are directly etched into blanks made of, for example, synthetic silica. (Refer to Fig. 6.) Laminar gratings are recommended for oblique-incidence applications.
For more details, please contact us or send us the request form.

Configuration of Concave Gratings

Fig.6 Groove Profile for Laminar Gratings

Configuration of Concave Gratings

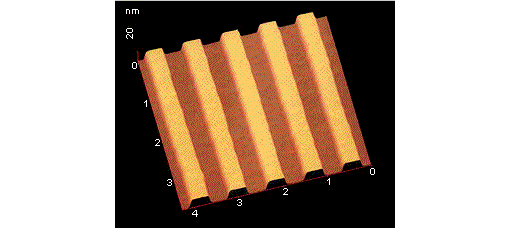

Fig.7 AFM Image of Laminar Gratings
Groove density : 1200grooves/mm
Groove depth : 15nm

Configuration of Concave Gratings

Fig.8 Measurement for Absorption Spectrum of Argon
