SH-I-5HT

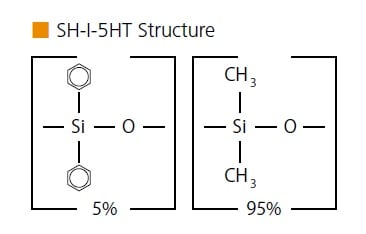

  • Low-polarity phase: Crossbond™ 5% diphenyl / 95% dimethyl polysiloxane
  • 40% longer lifetime from specially designed fused silica tubing.
  • Columns processed for high-temperature applications, such as mineral oil.
  • Similar phases: DB-5HT, VF-5HT
P/N ID df (Film Thickness) Length Temp. Range
221-75933-15 0.25 mm 0.10 μm 15 m -60 to 400°C
227-36091-01 0.25 mm 0.10 μm 30 m -60 to 400°C
227-36092-01 0.25 mm 0.25 μm 15 m -60 to 400°C
221-75934-30 0.25 mm 0.25 μm 30 m -60 to 400°C
227-36093-01 0.32 mm 0.10 μm 15 m -60 to 400°C
227-36093-02 0.32 mm 0.10 μm 30 m -60 to 400°C
227-36094-01 0.32 mm 0.25 μm 30 m -60 to 400°C
227-36095-01 0.53 mm 0.15 μm 30 m -60 to 380/400°C
