UV-3600i Plus
LabSolutions UV-Vis - Options
Analytical Data System for UV-Vis Spectrophotometers
Analysis Functions in LabSolutions UV-Vis

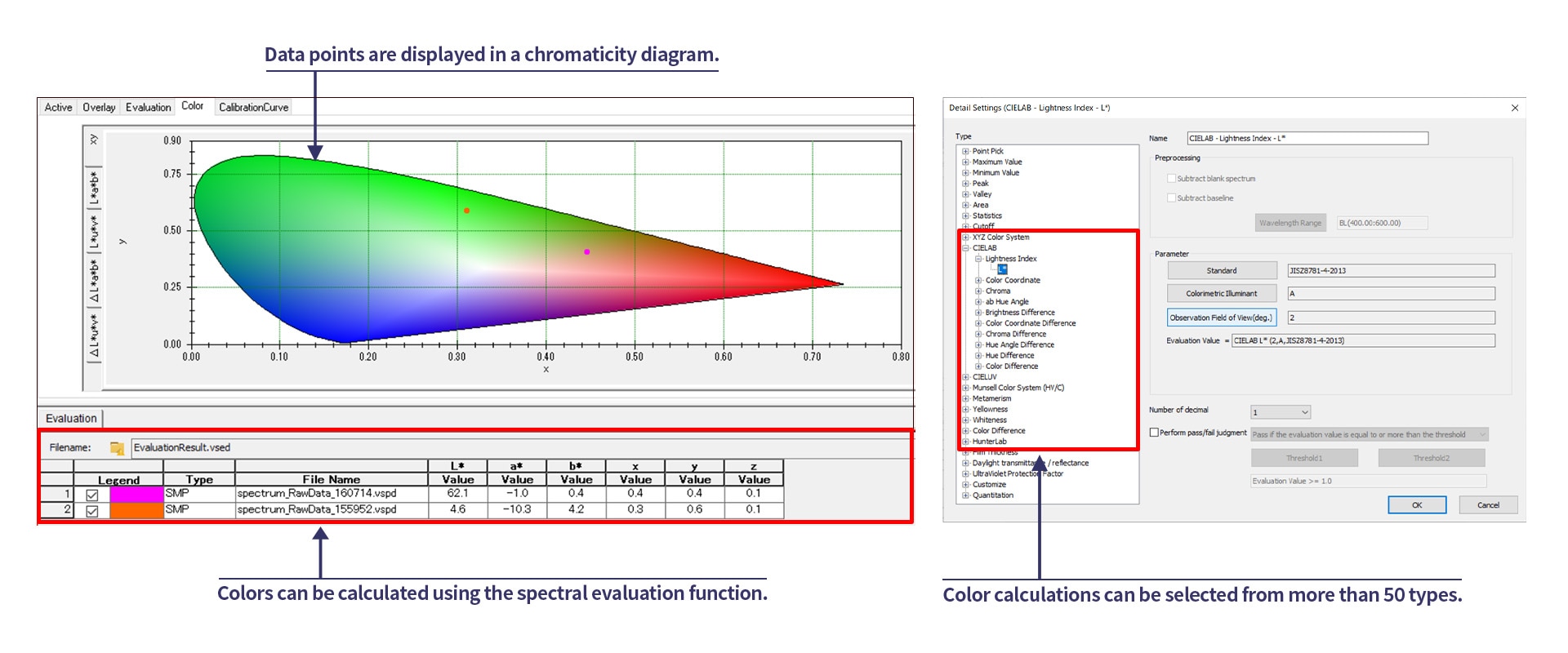

LabSolutions UV-Vis Color
- Color calculation can be added to evaluation function.
- In addition to JIS, ISO compatible calculations can be performed.

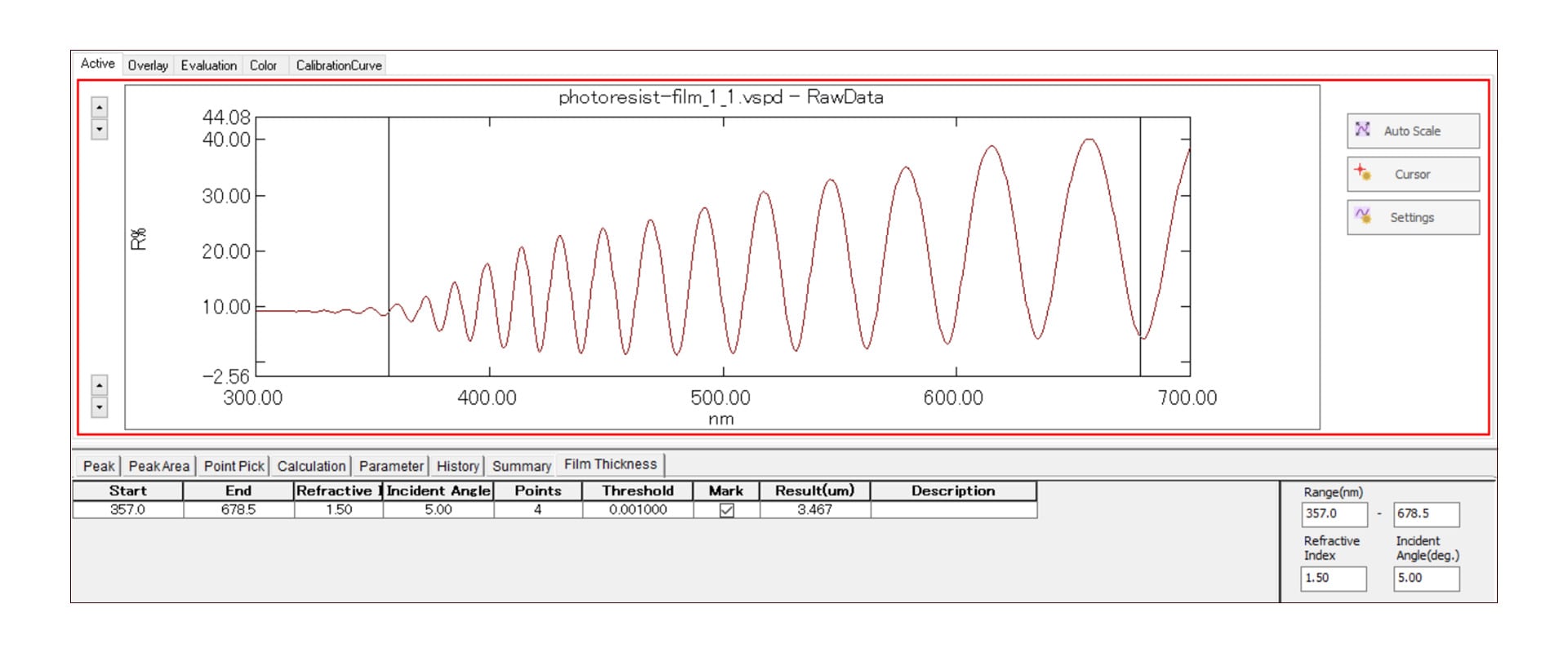

LabSolutions UV-Vis Film
In addition to the spectral evaluation function, data analysis can be performed with an exclusive film thickness table.

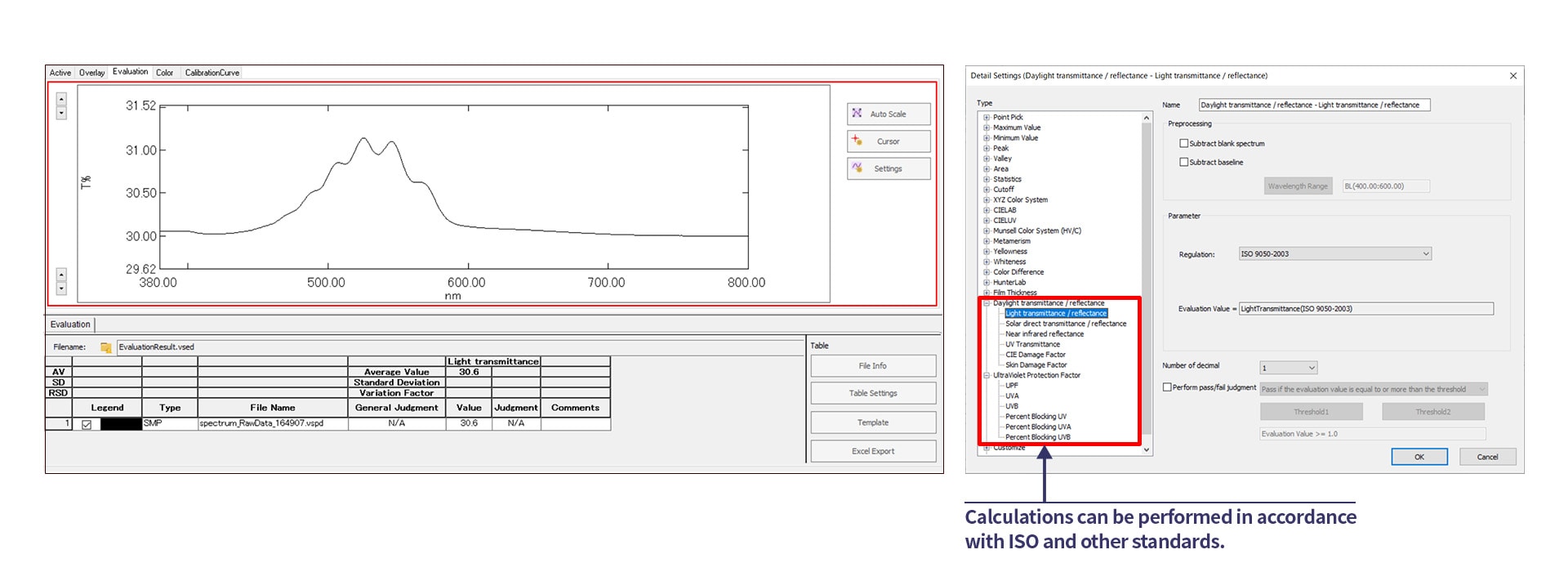

LabSolutions UV-Vis Daylight / LabSolutions UV-Vis UPF
Solar radiation transmittance/reflectance, and UPF (Ultraviolet Protection Factor) can be calculated using the spectral evaluation function.
Stronger Data Management
Comprehensive Data Integrity Compliance
In addition to LabSolutions UV-Vis, which provides basic functionality, Shimadzu offers LabSolutions DB UV-Vis and LabSolutions CS UV-Vis to meet the requirements of ER/ES regulations.

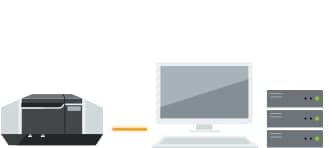

LabSolutions DB UV-Vis
LabSolutions DB UV-Vis allows for secure data management by integrating a data management function with LabSolutions UV-Vis. Compliant with ER/ES regulations, the software is optimally configured for customers using a PC. It is recommended for facilities that do not require network connections and want to be ER/ES compliant.
| Name | LabSolutions UV-Vis |
LabSolutions DB UV-Vis System
|
| Data management method | Measured data files are saved and managed in folders on the PC. | Measured data files are saved and managed in the LabSolutions database. |
| Data references | The software references files on drives or in folders on the PC. | The software references files in the database. |
| LabSolutions database | Unavailable | Available (The database resides on a local PC) |
| User administration | Unavailable | Available |
| Rights group administration | Unavailable | Available |
| Project administration | Unavailable | Available |
| Standalone /network | Only the standalone configuration can be used. | Only the standalone configuration can be used. |
| Data backup | Performed on a file-by-file basis using Windows Explorer. | Performed for each database. |
-

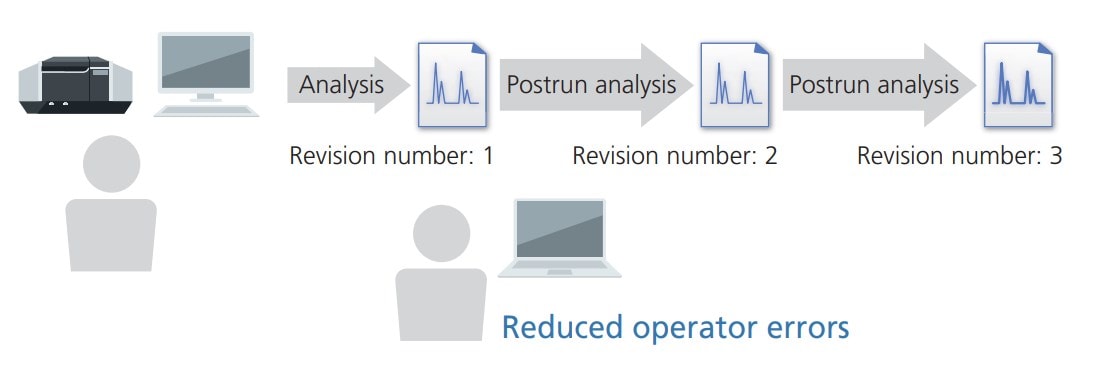

Database Management Prevents Mistakes
With LabSolutions DB UV-Vis System and LabSolutions CS UV-Vis System, the analysis data are managed securely by the database. Overwriting, deletion and other mistakes typical of data file management do not occur. In addition, when postrun analysis is performed using the acquired data, postrun analysis data revision numbers are automatically assigned, preventing the accidental overwriting of raw data. -
Solid Security
An audit trail to ensure the reliability of data and document e-mail transmission functions when any event occurs in the system can be set up. User accounts are
managed using passwords, where password length, complexity and term of validity must satisfy specified requirements. It is also possible to set lockout functions to prevent illegal access, and set a registered user’s deletion and change in status. In addition, a box can be selected to prevent overwriting a data file and outputting an item to a report can be performed.
-

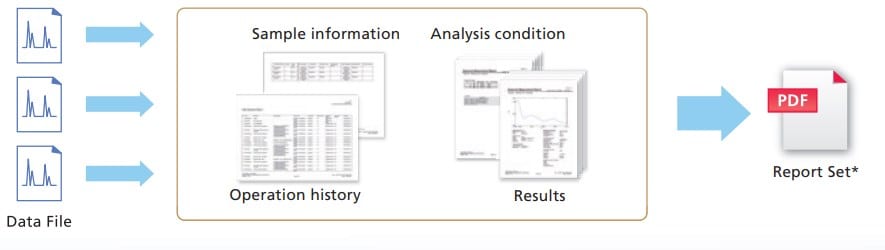

Visualization of the Sequence of Analysis Operations
Creating a report set* provides visibility of the individual analytical operations involved in the overall analytical process. When analytical operations are visible, it is easier to check for operating errors, which helps improve the efficiency and reliability of checking processes.
* Report sets include test methods and test results for a series of samples analyzed, and also a corresponding operation log (a record of all operating events from login to logout), which is automatically extracted from the data and summarized in a single report.
-

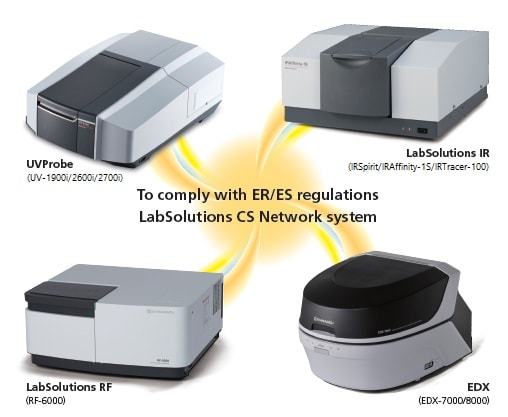

LabSolutions CS UV-Vis

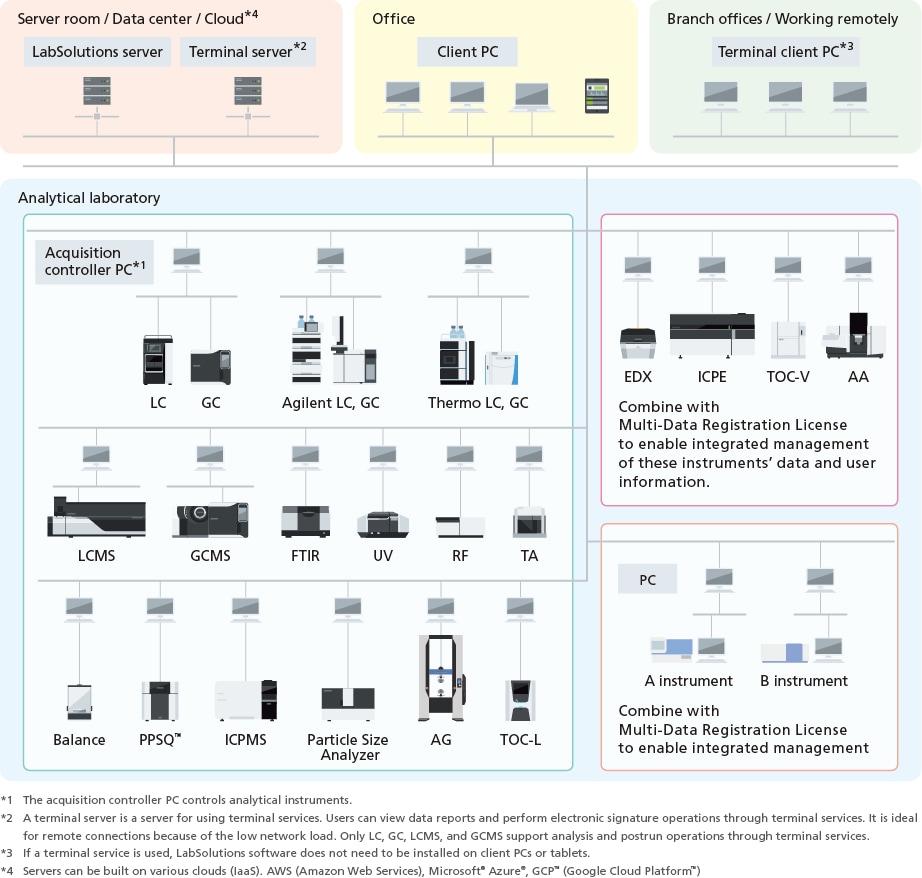

LabSolutions CS, which is freely accessible to the analysis network, can be connected to LabSolutions UV-Vis, eliminating the need for connecting a PC to the instrument. Since all the data are managed on a server, LabSolutions CS UV-Vis can be read from any personal computer on a network. With terminal service, LabSolutions UV-Vis can be controlled from a client PC without installing LabSolutions UV-Vis on it. It is recommended for facilities that have a large number of users, manage data in a database, and want to be ER/ES compliant.
-

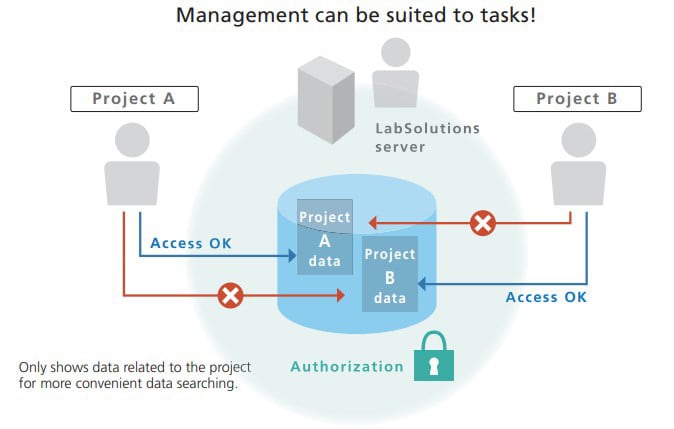

Pertinent Information Managed for Every Project
LabSolutions DB UV-Vis System and CS UV-Vis System provide a project management function enabling management suited to tasks and system operations. This function enables equipment and user management, security policy, and data processing to be set on a project-by-project basis, thereby improving the efficiency of data searches and management tasks. -
-
Visualization of the Sequence of Analysis Operations
Creating a report set* provides visibility of the individual analytical operations involved in the overall analytical process. When analytical operations are visible, it is easier to check for operating errors, which helps improve the efficiency and reliability of checking processes.
* Report sets include test methods and test results for a series of samples analyzed, and also a corresponding operation log (a record of all operating events from login to logout), which is automatically extracted from the data and summarized in a single report.
-

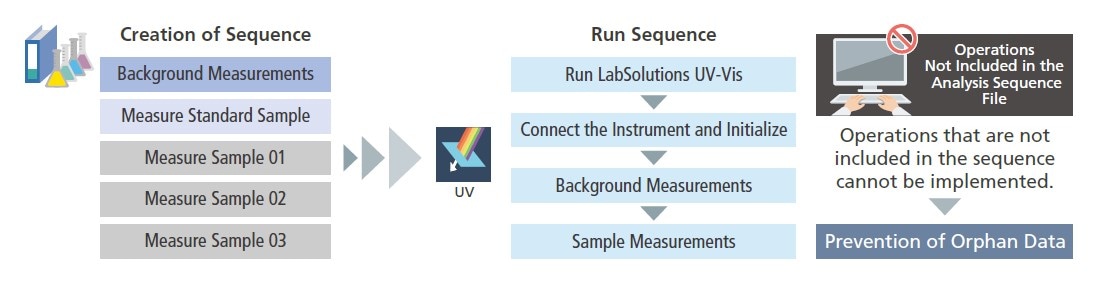

Analysis Sequence (Optional)
Ensuring data integrity requires a system that shows no data manipulation has occurred. Shimadzu has achieved this through the introduction of its Analysis Sequence for spectrometers. Using the Analysis Sequence, it is possible to verify that the full chain of analysis has been carried out according to an experimental protocol (or SOP).
The LabSolutions Analysis Sequence (optional) provides a three-step workflow:
- A sequence is put together according to a given experimental protocol (or SOP). See the flow below for reference.
- The operator conducts analysis in the order shown by the sequence file.
- After analysis, a report set is created from the sequence file used in the analysis. The experiment leader uses the report set to review the data chain generated by the sequence.
Until now, a problematic issue with data integrity in spectrometers has been the existence of orphan data (data which is isolated and not reviewed, despite being used in the analysis). However, the LabSolutions Analysis Sequence option not only meets the requirements for data integrity by preventing the creation of orphan data, but also allows for highly efficient spectrometer operation.

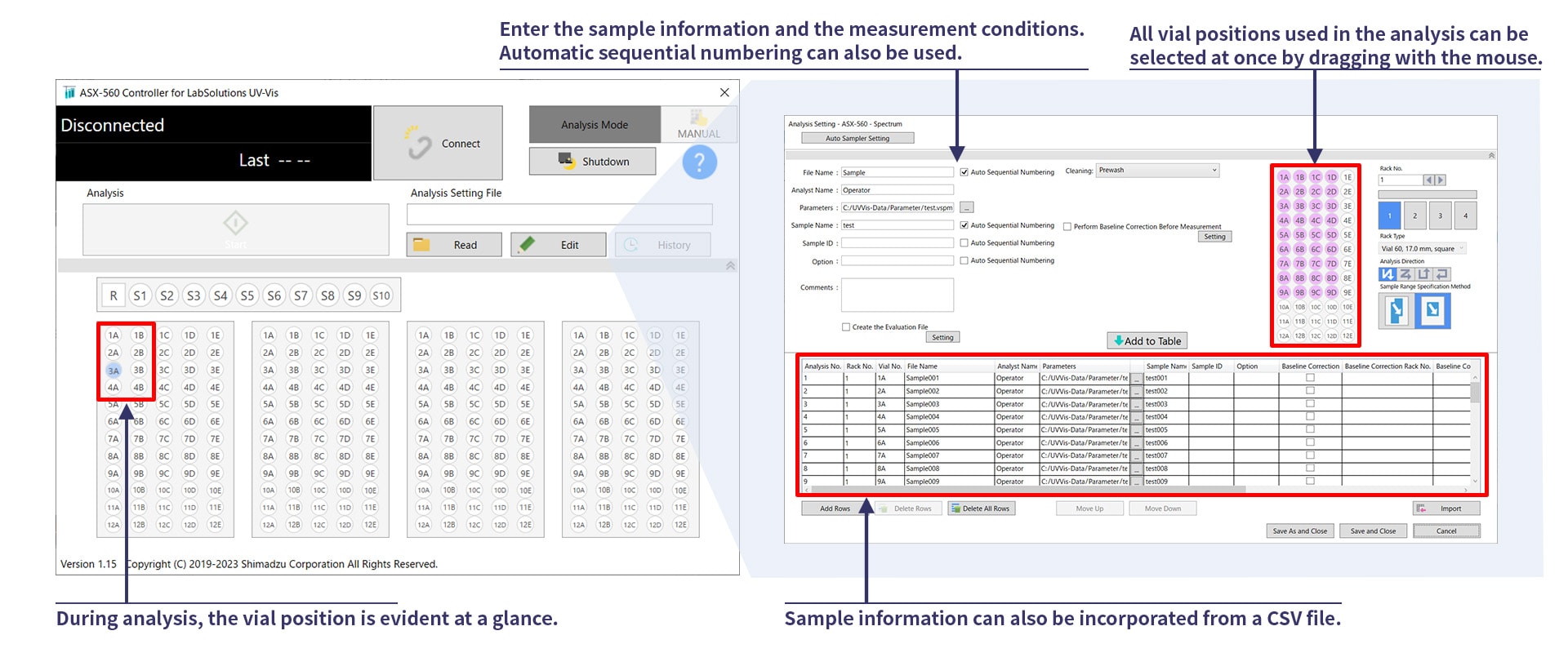

Autosampler Used for Continuous Analysis of Up to 360 Samples
If used in combination with an ASX series autosampler for automatic analysis, up to 360 samples can be automatically analyzed continuously. Furthermore, the spectral evaluation function can be used to navigate the entire process from measurement to data analysis.

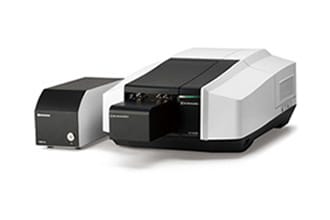

Tm Analysis System
This system analyzes the thermal stability (Tm analysis) of nucleic acids in compliance with ER/ES-related regulations. Measurement parameters, audit trails, and data acquisition/analysis results are managed in a database protected by user privileges and security policies to achieve the industry’s highest level of data integrity. The product line now includes a new model featuring 8 multi-micro cells with a 1 mm optical path length (minimum sample volume: 10 μL) for measuring even smaller quantities.
