DTG-60 Series - Options
Flow controller FC-60A (for all thermal analyzers)
The FC-60A flow controller is used to control the flow rate of atmosphere gases (of two channels). Since the gas ON/OFF control is performed according to a temperature program, the atmosphere can be automatically changed during a measurement.
Specifications
| Primary pressure | 0.6MPa max. |
|---|---|
| Flow rate | PURGE side: 0~500ml/min (calibrated for N2) DRY side: 0~500ml/min (calibrated for N2) |
| Flow line | PURGE: 2 IN, 1 OUT DRY: 1 IN, 1 OUT |
| Size and weight | W 180 × D 200 × H 90mm, approx. 3kg |
| Power supply | 90~130V AC or 210~230 V AC, 100VA |
Sample Sealing Crimp Press
Samples are prepared with various types of pans for Shimadzu thermal analyzers by using the SSCP-1 in combination with the attachment specifically for the pan to be used (sold separately).
Attachments
| Pan to Be Used | P/N | Description |
|---|---|---|
| *1 201-52943 Al crimp pans |
222-13053-91 | Crimp attachment |
| *2 346-66963-91 Al crimp pans |
222-12821-91 | Crimp attachment (for autosampler) |
| *3 201-53090 222-13175-93 Al hermetic pans |
222-12826-91 | Hermetic attachment |
| *4 222-13175-94 Ag hermetic pans |
222-12826-92 | Ag hermetic attachment |
| *5 346-68518-91 Al hermetic pans (for the DSC ) |
222-12809-91 | Hermetic attachment (for the DSC autosampler) |
| *6 346-68796-91 Al hermetic pans (for the DTG) |
222-12804-91 | Hermetic attachment (for the DSC autosampler) |
| *7 222-13073-91 Al pressure-proof pans |
222-12915-91 | Al pressure-proof pans attachment |
Sample Cell
Various cells are available.
The cell can be selected in accordance with the use.
* Cannot be used with the autosampler
LabSolutions Series
Related information
-

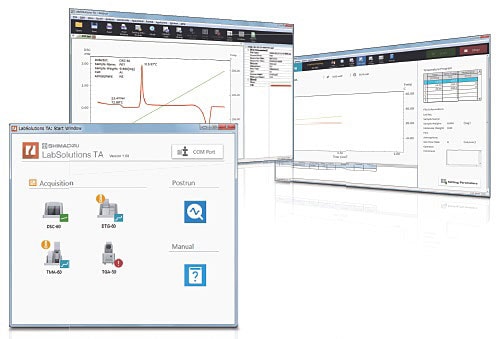

A new design and enhanced functions that can be used at a glance. Intuitive operations that allow seamlessly performing the sequence of processes from measurement to analysis, and the outputting of reports. As part of the LabSolutions™ family, this software is network compatible.
