Radiography SystemRADspeed Pro™ SR5 Version combined with DR sytem
High Examination Efficiency
Vision for High Throughput
Auto Stitching of Long View Images
Speed Stitch OPTION
The system automatically swivels the X-ray tube and moves the FPD to capture images. The captured image data is then automatically stitched together in the DR system. That makes it easy to create images that are wide along the longitudinal direction of the body.*
- *This functionality is available for systems that combine a Shimadzu BR-120 or BR-120T Bucky stand and a BK-200 Bucky table with a DR system from other manufacturers. For information about compatible DR systems, contact a Shimadzu sales representative.
Click here for the video only page
Combination with DR system Capability Offers New Clinical Value

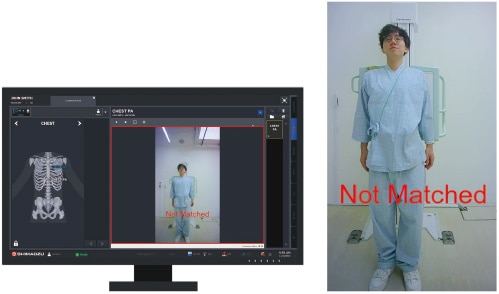

Protocol Match Check OPTION
During patient Positioning, the DR system displays the video image and analyzes it to compare with the selected protocol, thus reducing positioning errors.
* Available when VISION SUPPORT is selected.
Click here for the video only page

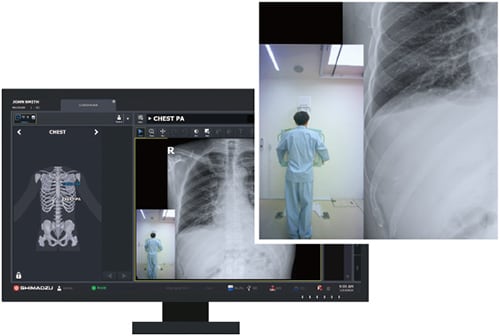

Prior Images Recall OPTION
Before positioning the patient, previously captured positioning images can be recalled on the DR system to help ensure consistent positioning.
* Available when VISION SUPPORT is selected.

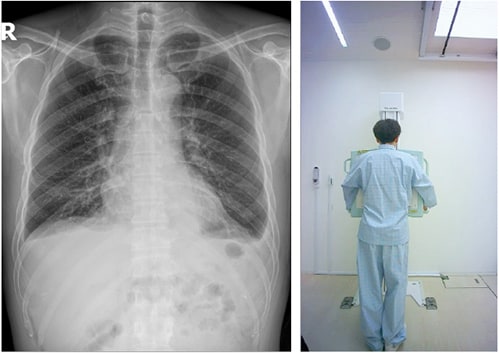

Snapshot OPTION
By sending X-ray images along with camera images to PACS for diagnosis, additional information is provided to enhance confidence and accuracy in image interpretation.
* Available when VISION SUPPORT is selected.
Smart Noise Reduction OPTION
Smart Noise Reduction helps to reduce radiation dose while maintaining image quality. This software provides versatility for various examinations and user-friendly operation
w/ standard dose(100%)
75kVp, 20mAs
w/ reduced dose(50%)
75kVp, 10mAs
Smart Bone Suppression OPTION
Bone Suppression allows healthcare professionals to achieve diagnostic precision effortlessly. This solution swiftly unveils soft tissues by suppressing ribs and clavicles within the lung field. It delivers a clear, suppressed image, prioritizing patient care by acquiring images without additional exposure.
Left: Original Image
Right: Bone Suppressed Image
One Shot Scoliosis Imaging OPTION
The 17 x 51 inches long format FPD makes it possible to perform scoliosis examinations with a single exposure therefore minimize the effect of motion artifact. Quick and accurate long view imaging can meet the needs of examinations for scoliosis patients.
DR System (recommended FPD)

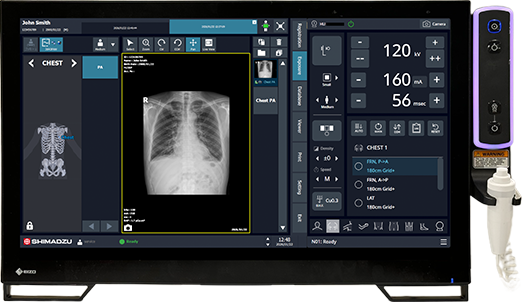

*Display screen image of the PC to operate the DR system.
