Features

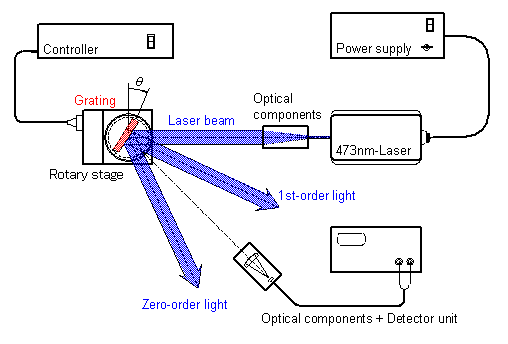

Schematic of Shimadzu Laser Stray Light Measuring System
Schematic of Light Intensity in Vicinity of First-Order Light Measuring System
Standard List
| Code Number | Groove Density (grooves/mm) |
Blaze Wavelength (nm)*1 |
Stray Light Values*2 |
DimensionsW x H x T (mm) |
|
|---|---|---|---|---|---|
| LS120-025-3010 | 1200 | 250 | 2 x 10-6(max.) | 30 x 30 x 10 | |
| LS120-025-6010 | 1200 | 250 | 2 x 10-6(max.) | 60 x 60 x 10 | |
| LS120-050-3010 | 1200 | 500 | 2 x 10-6(max.) | 30 x 30 x 10 | |
| LS120-050-6010 | 1200 | 500 | 2 x 10-6(max.) | 60 x 60 x 10 | |
| LS120-060-3010 | 1200 | 600 | 2 x 10-6(max.) | 30 x 30 x 10 | |
| LS120-060-6010 | 1200 | 600 | 2 x 10-6(max.) | 60 x 60 x 10 | |
| LS180-025-3010 | 1800 | 250 | 2 x 10-6(max.) | 30 x 30 x 10 | |
| LS180-025-6010 | 1800 | 250 | 2 x 10-6(max.) | 60 x 60 x 10 | |
| LS180-050-3010 | 1800 | 500 | 2 x 10-6(max.) | 30 x 30 x 10 | |
| LS180-050-6010 | 1800 | 500 | 2 x 10-6(max.) | 60 x 60 x 10 | |
Standard Specifications
| Grating Type | Equally spaced straight-groove replica grating*3 | |
|---|---|---|
| Blank Material | Soda glass | |
| External Dimension Tolerance | ±0.1(W) x ±0.1(H) (mm) | |
| Thickness Tolerance | ±0.5(T) (mm) | |
| Effective Area | Total area less a 2-mm strip around the perimeter | |
| Groove Density Tolerance | ±0.5 grooves/mm | |
| Diffraction Wavefront Accuracy | Within 2λ(+1st-order light, λ = 632.8nm) | |
| Coating | Aluminum (Al) | |
| Scratches and Digs | 80-50 (In accordance with MIL-O-13830A) | |
- ※RoHS compliant (Directive 2011/65/EU + (EU)2015/863 on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment)
Outline Drawing of Diffraction Grating
- *1: The blaze wavelengths is the wavelength of the maximum diffraction efficiency with the design in littrow mounting. No one to guarantee the wavelength of the maximum diffraction efficiency.
- *2: These indicate the ratio of the diffracted light intensity to the incident intensity of 473nm laser. The diffracted light is detected of mid-point between zero- and first-order light at the deviation angle 2K of 27 degree.
- *3: The grating grooves are formed with resign.
