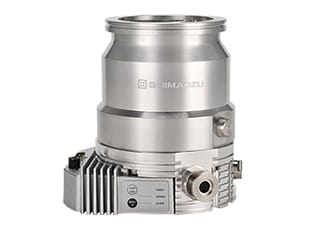

TMP-B300 / TMP-B70
Features：
- Combination of Magnetic Bearings and Ceramic Bearings
Our unique damping mechanism achieves low vibration and bearing cooling functions, resulting in high reliability and product lifespan. - High Back Pressure and High Hydrogen Compression Ratio
The combination of turbine blades and molecular pumps enables high vacuum exhaust even under high back pressure. The hydrogen compression ratios are achieved at 4×105 for the TMP-B70 and 1×105 for the TMP-B300. Ultra-high vacuum can be achieved by combining with small dry vacuum pumps like diaphragm pumps./li> - Low Heat Generation Motor
By reducing motor heat generation, the rise in bearing temperature has suppressed, ensuring a long lifespan. - Backflow Prevention Labyrinth Seal (TMP-B300)
the diffusion of grease (base oil) used in ceramic bearings is suppressed and a clean vacuum is achieved.
TMP-B300

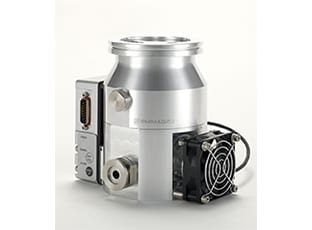

TMP-B70

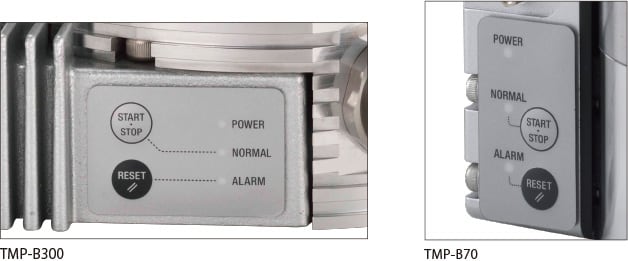

Integrated Controller
Local start, stop, and reset operations are possible.
Operation can be performed by RS485 and remote contact signals.
PC communication software is available. The input is DC24V.

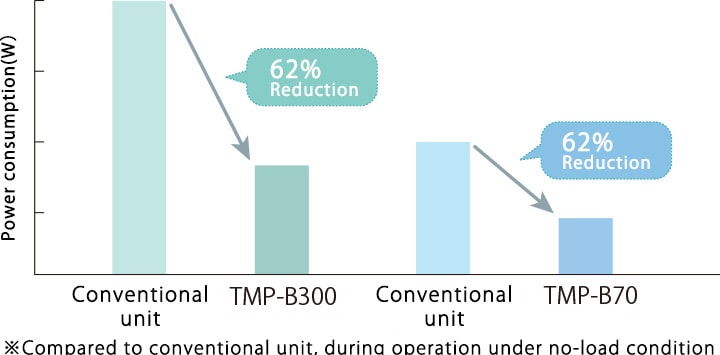

Energy Saving
This series, which adopts newly developed power units and high-efficiency motors, significantly reduces power consumption, resulting in a lower environmental impact.

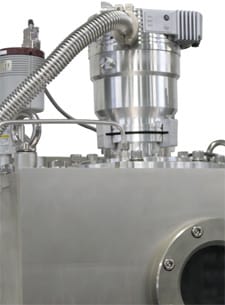

Enable to Mount Every Direction
Vertical, horizontal, and inverted mounting is possible.
