Features
- Simple connection by connecting the TMP cable
- Display panel with excellent visibility
- Intuitive pump operation controls
- Compatible with vacuum gauges from various manufacturers
Pressure display possible with a 0-10V voltage corresponding to the logarithm of the pressure - Convenient interlock function
| TMP Delayed Start | A function that starts the turbo molecular pump after sending a start signal to the auxiliary pump and after a set time has elapsed. |
|---|---|
| Vacuum Gauge-Linked TMP Start/Stop | A function that starts the auxiliary pump and activates the turbo molecular pump after the pressure reaches the set pressure. Additionally, a function that stops the turbo molecular pump if the pressure exceeds the set pressure. |
Specifications
| Item | Detail |
|---|---|
| Model | EI-DPS240 |
| Power Input | AC100～240 V (+10% / -15%) Single phase 50/60 Hz |
| Power consumption | Maximum 280VA |
| Mass | 2.0 kg |

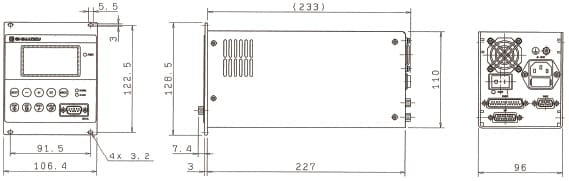

Specifications

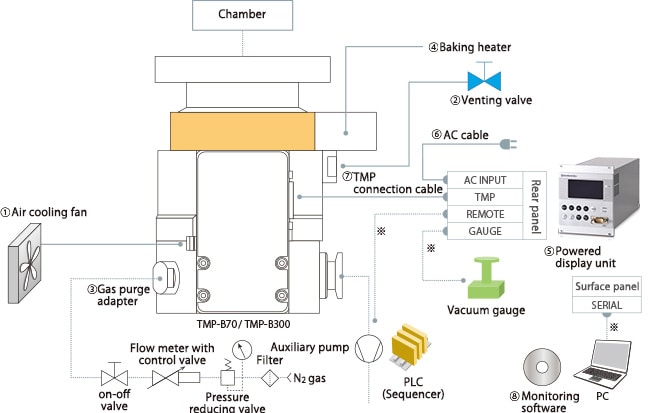

Connection Example
