2023

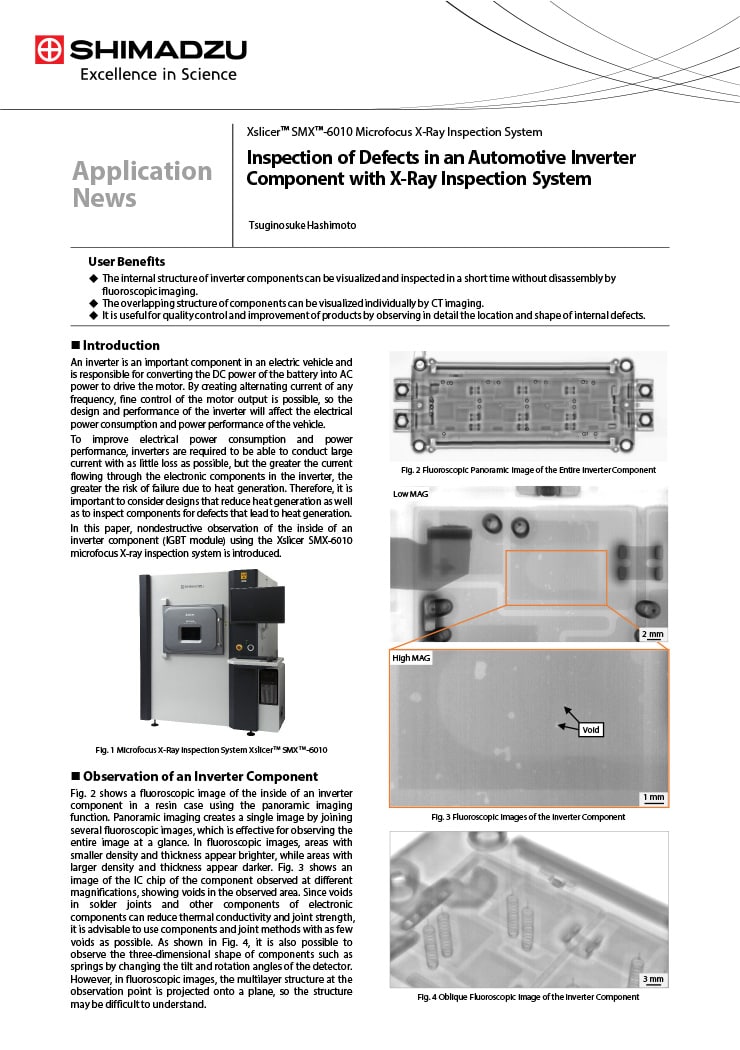

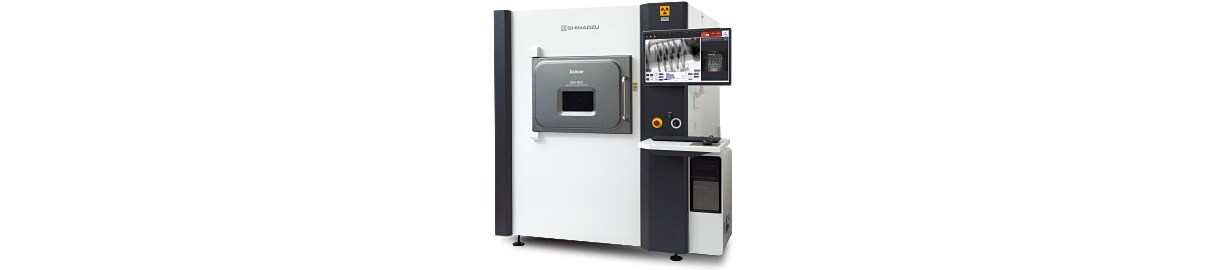

Xslicer SMX-6010 microfocus X-ray inspection system

3D Observation to Support Failure Analysis in the Electronics Industries

Xslicer SMX-6010 is a planer X-ray inspection system, featuring a micro-focus X-ray generator and a 3 megapixel flat panel detector. In addition to fluoroscopic imaging, the Xslicer SMX-6010 is equipped with PCT (Planer CT) imaging functionality as standard, which provides cross-sectional images without the need for complex procedures. Since its launch in 2021, the high-definition image quality and easy operability of the Xslicer SMX-6010 have been highly rated in the electronics industries. This time, with the release of the VCT option that enables VCT (vertical CT) imaging on the Xslicer SMX-6010, VCT imaging is now available in addition to conventional fluoroscopic and PCT imaging, providing a wide range of support for quality control and failure analysis of circuit board components electrical components, and other electronic parts.

• Vertical CT imaging in addition to fluoroscopy and proton CT
• Motorized XY stage for easy positioning
• Optimized for failure analysis of electronic devices

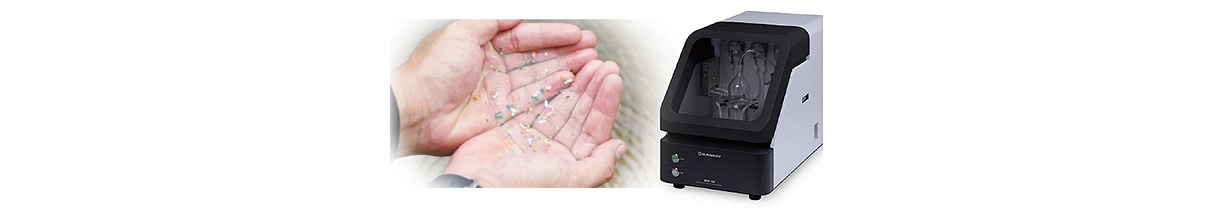

MAP-100 Automatic Microplastics Pretreatment Unit

The World’s First Automated Extraction and Recovery Process for Microplastics Analysis

The MAP-100 automatic microplastics pretreatment unit is the first in the world to automate the process of extracting and collecting microplastics in oceans, rivers, lakes, and other water in the environment. To accurately analyze microplastics in aqueous samples, an essential step is to isolate the particles from other components in the sample. The MAP-100 automates acid treatment and density separation processes, as well as the collection of the particles in the sample, resulting in a more efficient, safer experience for analysts. The MAP-100 automates the typical steps needed to isolate microplastics. This improves the reproducibility of the analytical workflow, enables lab technicians to focus on other tasks, and makes handling of reagents safer.

• Replaces Troublesome Manual Work with a Specialized Unit
• Compatibility with Guidelines from the Japanese Ministry of the Environment
• Simple, Intuitive Software

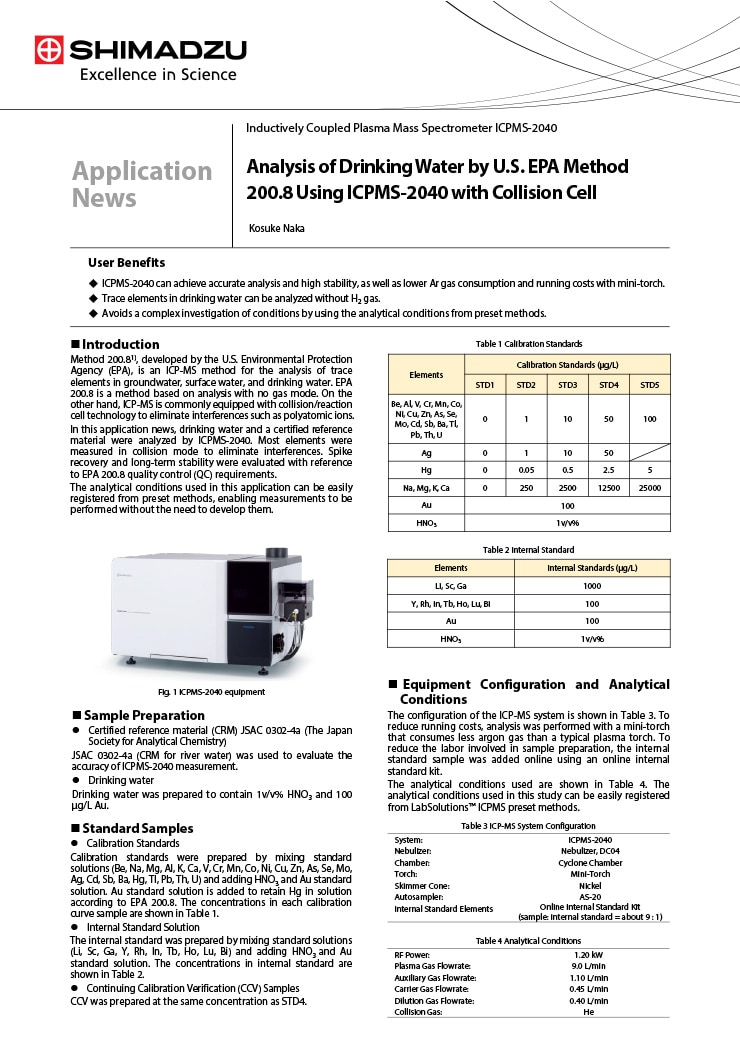

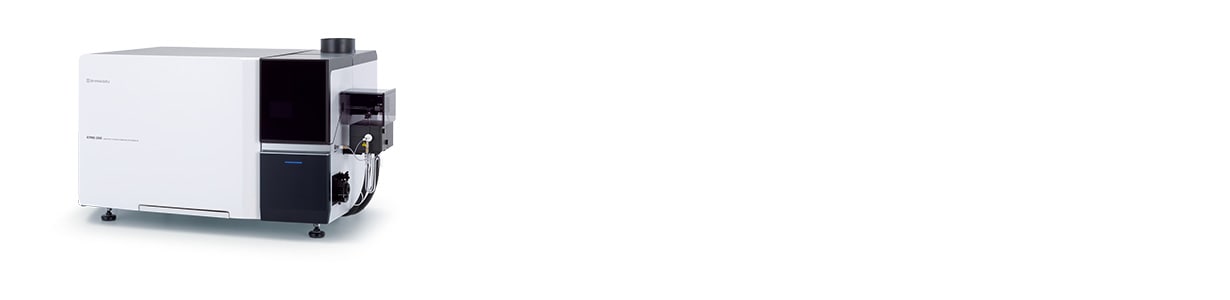

ICPMS-2040/2050 Series ICP Mass Spectrometers

An Era Without Compromise

The ICPMS-2040 series and ICPMS-2050 series are inductively coupled plasma mass spectrometers (ICP-MS) for qualitatively and quantitatively analyzing inorganic elements. The ICPMS-2040/2050 achieve high-sensitivity measurements with less environmental load due to reduced argon gas consumption during measurements.
The ICPMS-2040 is the standard model whereas the ICPMS-2050 offers higher sensitivity. The ICPMS-2050 achieves superior sensitivity measurements for specific elements through a new mechanism for removing unnecessary ions. Additionally, both products provide approximately twice the sensitivity of conventional models through the use of a uniquely designed plasma torch. They also provide for a more efficient workflow by incorporating a wide variety of functions to support users, such as a function to shorten the rinse time, and field-specific measurement conditions that are provided as standard.

• Exceptional yet Eco Friendly
• High Throughput with No Additional Cost
• Minimal Operation Required

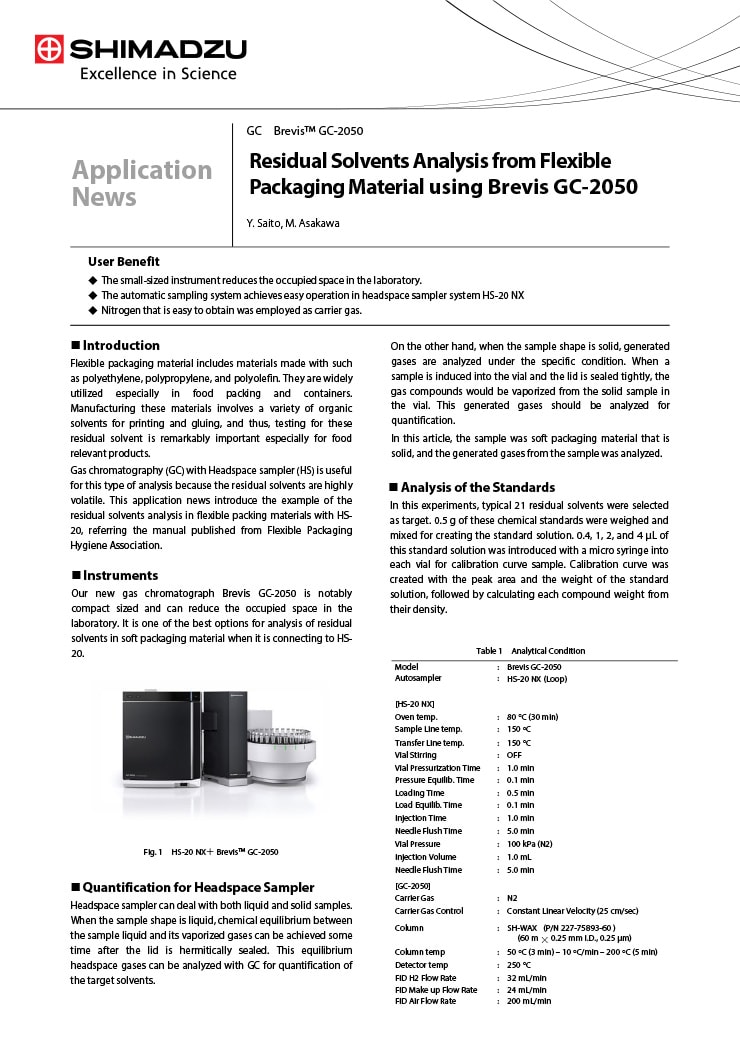

Brevis™ GC-2050

Providing both Productivity Improvements and Space Savings

"Smaller, simpler, and easier to use – without compromising performance." That’s the demand from analysts. And that’s why Shimadzu developed the Brevis GC-2050.
The Brevis GC -2050 delivers best-in-class analytical performance and equipment size 350 mm wide without sacrificing conventional performance and scalability, contributing to space savings and increased productivity. The product also reduces power consumption by 30% compared to conventional models, making it environmentally friendly. This new GC easily meeting the analysis needs of laboratories in a range of　industries, including petrochemicals, fine chemicals, the environment, pharmaceuticals, food, electronics/semiconductors, and perfumes.

• Compact without Compromise
• Built-in Analytical Intelligence
• Best-in-Class Performance

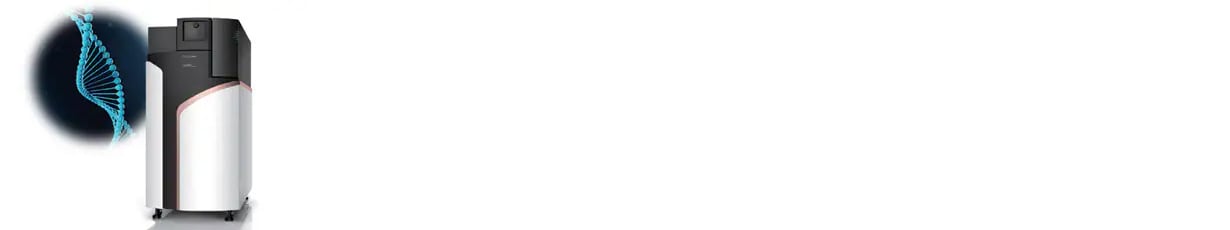

LabSolutions Insight Biologics
(Software for Oligonucleotide Characterization)

A Dedicated Workspace for Oligonucleotide Characterization

LabSolutions Insight Biologics is a dedicated software platform for oligonucleotide characterization using the LCMS-9030 or LCMS-9050 quadrupole time-of-flight type (Q-TOF) mass spectrometer. Main product and impurity identification includes several core editors for sequence, nucleotides, linkers, ribose and base modifications. Together with processing and integration for target modifications, Insight Biologics is a comprehensive workspace for data review, processing, and reporting.

• Complete workflow from data acquisition to analysis and reporting
• A superior user experience (Depiction of the structural formula, component chromatogram display, display of fragment coverage)

UF-Amino Station

Amino Acid Analysis System Enables Both Multicomponent Analysis and Improved Throughput

UF-Amino Station, which was developed in collaboration with Ajinomoto Co., Ltd., uses a special high-speed and high-separation column and the LCMS-2020 mass spectrometer, to perform batch analyses of 38 amino acids and amino acid-related components in a mere 9 minutes. Derivatization reactions are performed automatically, so tedious manual procedures are not required. UF-Amino Station is particularly effective in the field of biochemistry, where analyses of culture media, plasma, and other biological samples are required.

• High-Speed Batch Analysis of 38 Amino Acids Can Be Performed in Just 9 Minutes
• Automatic Derivatization Improves Efficiency and Reliability
• Smooth Data Analysis via LabSolutions Insight

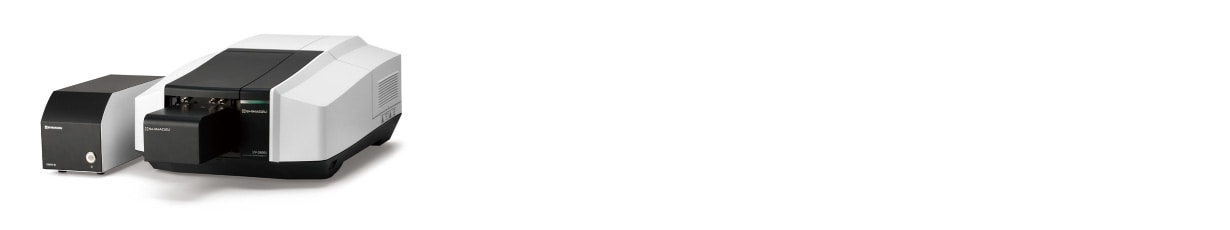

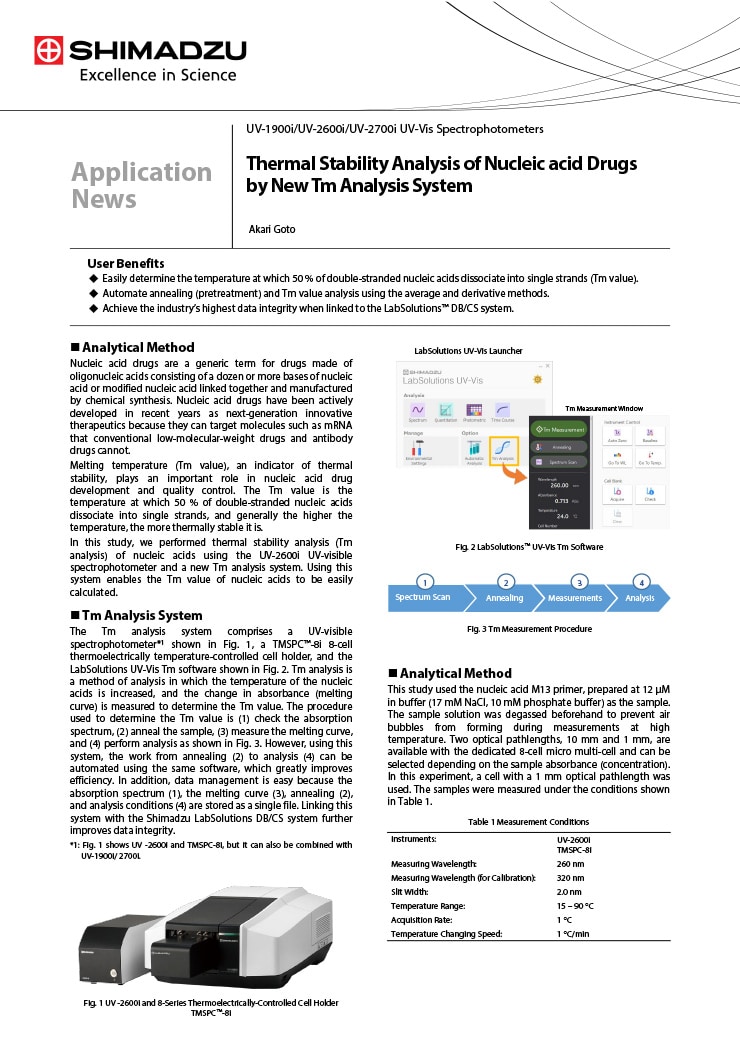

Tm Analysis System

One-Step, Efficient Evaluation of the Thermal Stability of Nucleic Acid Pharmaceuticals

Tm analysis systems can accelerate the development process and improve the quality of oligonucleotide therapeutics. Control by LabSolutions software enables compliance with ER/ES-related regulatory requirements and improves the efficiency of analyzing the thermal stability (Tm analysis) of nucleic acids.

• Enabling Everything from Measurements to Data Analysis in One Step, a First for the Industry
• Improves Repeatability and Reduces Costs
• The Highest Level of Data Reliability in the Industry

Autograph AGX-V2 Series

Shimadzu has been manufacturing testing machines for more than 100 years. The AGX-V2 is the culmination of the continuous evolution of the AUTOGRAPH based on our wealth of experience and achievements, and insights from customers around the world. It features a high rigidity frame; multi processors, high-speed sampling and high-accuracy automatic control; an intelligent crosshead; stroke limit switches; a high degree of safety; a controller equipped with a progressive user interface; and software that supports the creation of test conditions and data processing with intuitive operability.

• Aggregation of Cutting-Edge Functions
• True Safety for Both the Operator and the Machine
• Operability that Takes the Shortest Path to Results

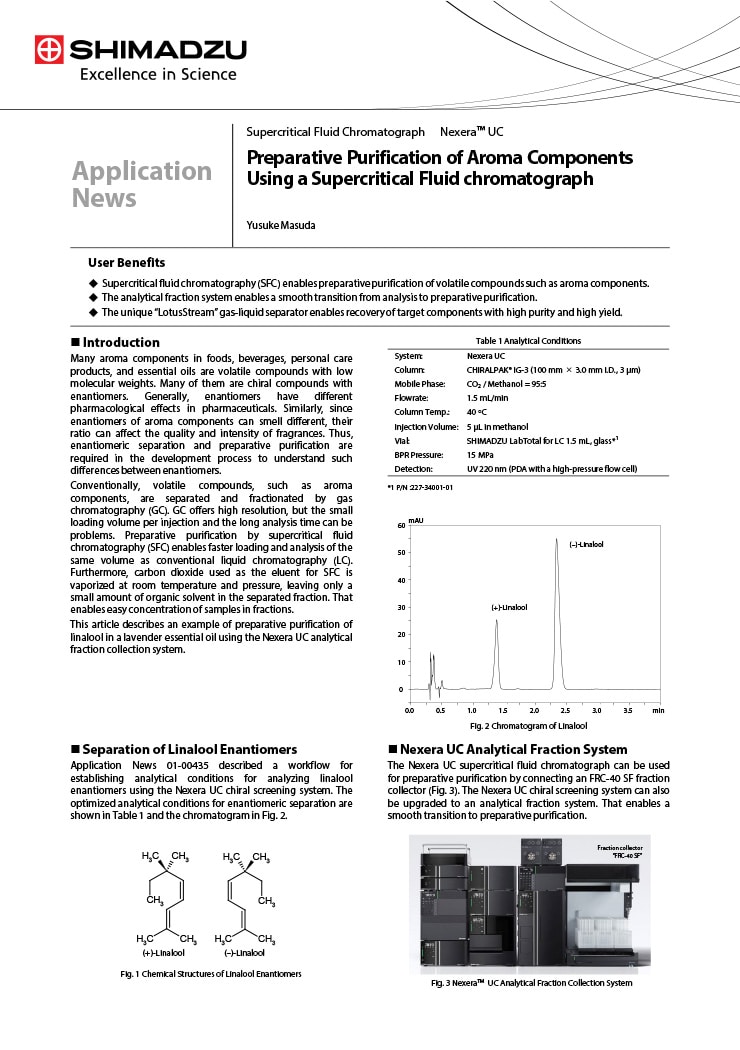

Nexera UC

Unified Chromatography...
Just another chromatographic technique...
or the only technique you’ll need?

• Unified speed of analysis, sensitivity, and resolution
  Supercritical CO₂ enables highly efficient sample extraction and high-resolution chromatographic analysis. The result; improved sensitivity and throughput for multi-analyte analyses.
• High recovery rate of preparative purification with excellent operability
  Reliable small volume fractionation is ensured through Shimadzu’s unique collection technology.
• Fully automated on-line sample preparation, analysis and fractionation
  Target compounds are automatically extracted, analyzed, and fractionated.

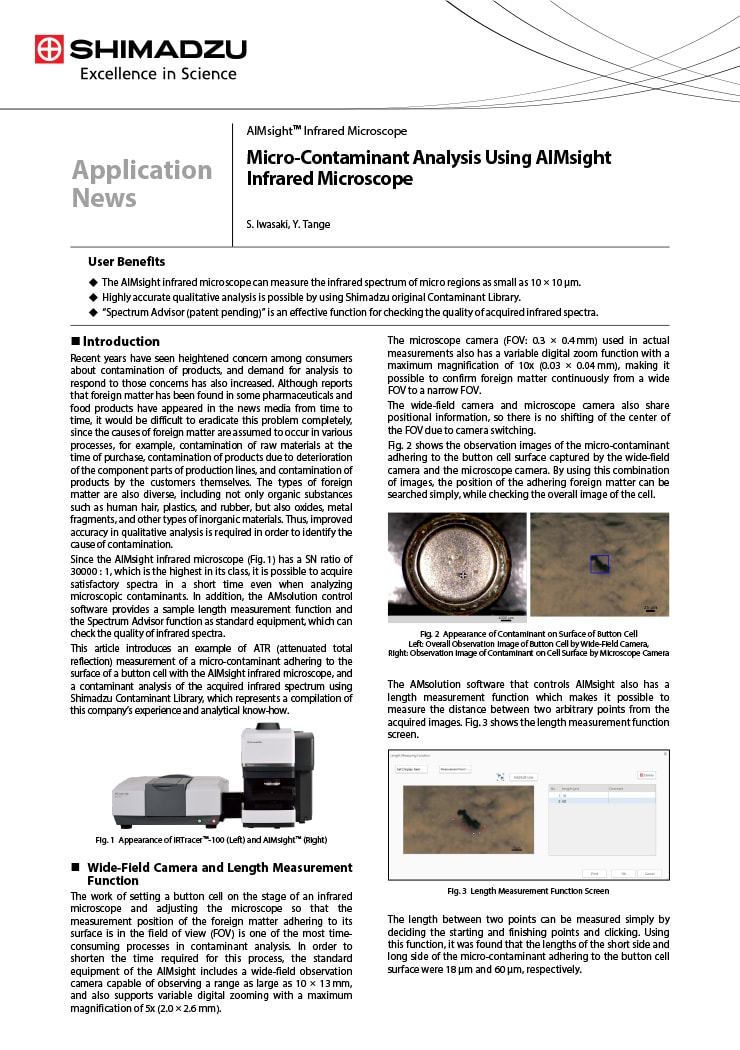

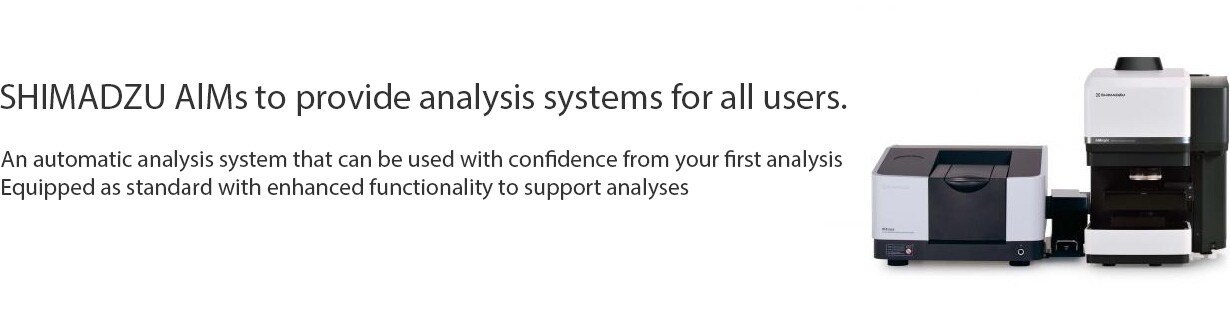

AIMsight Infrared Microscope

AIMsight is an automatic analysis system that can be used with confidence from your first analysis. It is equipped as standard with enhanced functionality to support analyses.

• Observe
  wide-field camera
• Measure
  Automatic contaminant recognition system
  Highest class S/N length measurement function
• Analyze
  Original library of high hit ratios
  Contaminant analysis program
  Spectrum advisor function

CLAM-2040 Fully Automated Sample Preparation Module for LCMS

Pave the way for the future of clinical research.

The CLAM-2040 accompanies you on most of the analytical workflow and improves your overall throughput by drastically reducing the sample preparation time. Simply place the blood tubes in position and the CLAM-2040 performs the next steps automatically, from sample extraction, up to the LCMS analysis and data processing.

・Effortless performance
・Standardized workflow
・Operational productivity
・Flexibility
・Innovation

Infrared Spectroscopy and Raman Spectroscopy

Infrared and Raman Microscope Based on a Combination of Two Analytical Techniques to Provide Complementary Molecular Information.
This simple system improves the efficiency of analytical operations by making it easy to perform all process steps from sample observation to data analysis.

・Same position:
Both FTIR and Raman Spectra Can Be Measured without Moving Samples

・Smart software:
One Software to Measure and Analyze Both FTIR and Raman Spectra

・Single system:
Obtain Organic and Inorganic Information with One Instrument
