UV-2600i, UV-2700i - Options

LabSolutions CS features an innovative operating environment and provides complete data management to ensure secure information in networked laboratories.

Shimadzu UV-Vis makes your work faster and easier.

- Simple Easy to use for everyone
- Smart Optimize quality control
- Seamless Easy transfer of measurement data

This trace quantity measurement system can perform measurements simply and accurately, even with ultra-small sample volumes on the order of a few μL.

This software calculates film thickness from the peak positions of the interference pattern caused by the film.

This software calculates the color values of the measured object from the spectra obtained by the spectrophotometer.

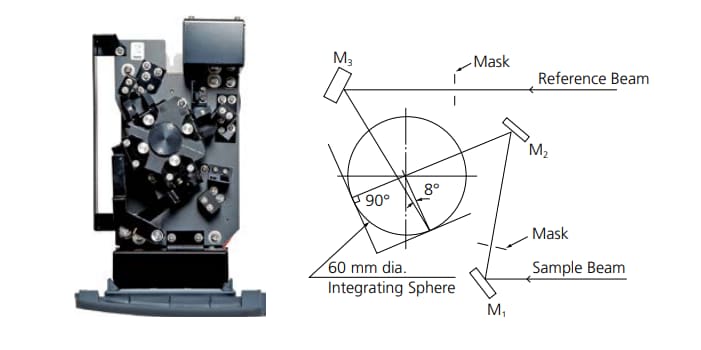

This unit uses a lens and mask to mask the beam that passes through the integrating sphere opening.

This large-sample compartment enables transmission and reflection measurements of various-shaped samples.

The transmittance of thin samples such as film with little scattering can be measured by combining the film holder with the standard sample compartment.

With absolute specular reflectance measurement, as shown in the figure, a reference sample is not used, the sample-free state (air) is set at 100%, and the reflection of the sample is simply applied to the 100% setting when measuring the sample.

With relative specular reflectance measurement, the reflectance is calculated from the strength ratio after comparing the light reflected from the reference sample with the light reflected from the measurement sample.

Since light cannot penetrate opaque (solid) samples, it is reflected on the surface of the samples.

The following accessories are used to continuously supply samples to a sample compartment for measurement.

Shimadzu UV-Vis makes your work faster and easier.

- Simple Easy to use for everyone
- Smart Optimize quality control
- Seamless Easy transfer of measurement data

The following accessories are used for biological component measurement, enzymatic activity measurement and reaction rate analysis for which the sample must be kept at a constant temperature.

The following accessories are used to measure micro-volume samples.

When the concentration of the sample is too low to be measured using a standard cell with an optical path length of 10 mm, a cell with a longer optical path length is used to enable measurement at the optimum absorption sensitivity.

This is used to measure samples, without diluting them, with an absorbance too high to be measured using a standard square cell with an optical path length of 10 mm.

Samples are placed in cells for measurements.

Multifunctional Software with Multiple Measurement Functions / Enhanced GLP/GMP Support Functions

This software is designed specifically for validating UV-1900, UV-2600, or UV-2700 series models.

The software can be used to perform instrument validation in compliance with Japanese, US, and European pharmacopoeias. It can also save validation parameters in a file to ensure validation is performed for identical parameters.
