SPM-9700HT Plus - Specs

Scanning Probe Microscope/Atomic Force Microscope

Add Bookmark

Specs

Resolution XY 0.2 nm
Z 0.01 nm
Max scanning size
（X・Y・Z）		 10 µm×10 µm×1 µm (standard)
30 µm×30 µm×5 µm (optional)
125 µm×125 µm×7 µm (optional)
55 µm×55 µm×13 µm (optional)
2.5 µm×2.5 µm×0.3 µm (optional)
Max sample size φ24 mm×8 mm

Installation Specifications

Temperature  23℃±5℃
Humidity 60 % max. (no condensation)
Single Phase 100 to 120 V, 50/60 Hz, 15 A, 2 circuits
Grounding Type D grounding (maximum resistance 100 Ω)
SPM Unit W180 × D255 × H260 mm, 5.5 kg
Control Unit W250 × D420 × H454 mm, 18.5 kg

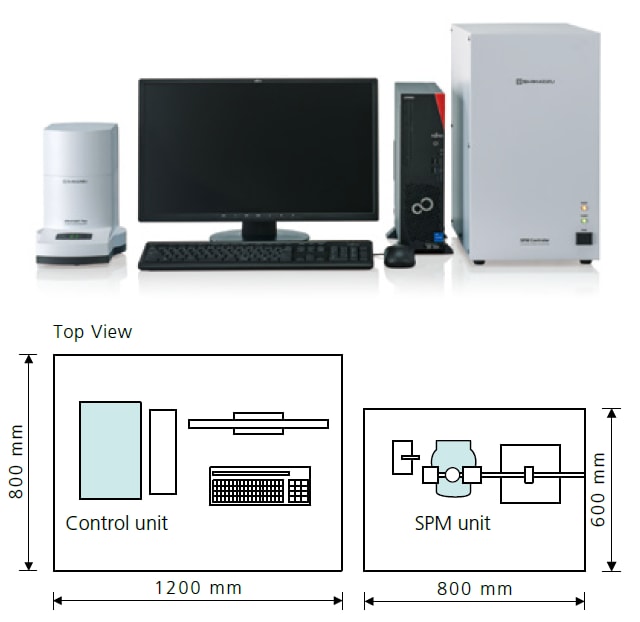

Installation Specifications
  • This figure is one example of a configuration.
  • The sizes of the OA table and desk-type air-spring
    vibration damper are for reference.
