SPM-9700HT Plus

Scanning Probe Microscope/Atomic Force Microscope

Add Bookmark

SPM-9700HT Plus

Scanning probe microscope (SPM) is a generic term for microscopes that scan sample surfaces with an extremely sharp probe to observe their three-dimensional image or local properties at high magnifications. The SPM-9700HT Plus takes high-throughput observations to the next level.







SPM-9700HT, Nano 3D Mapping, and the Analytical Intelligence logo are trademarks of Shimadzu Corporation or its affiliated companies in Japan and/or other countries.
This instrument is not available in European regions and may also be unavailable in certain other countries. Please contact your local Shimadzu representative for information on availability.

Features

Learn more

Videos

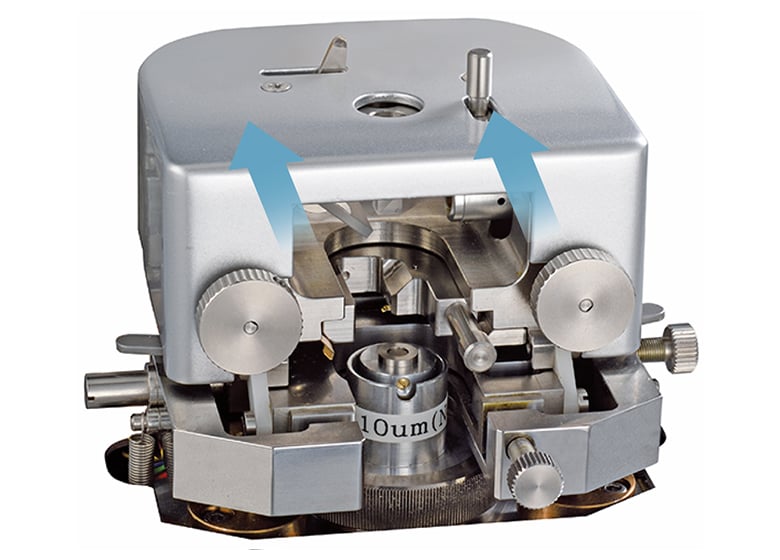

  • SPM-9700 Head-Slide Mechanism

    • Surface Analysis

    Sample replacement without stopping laser irradiation, outstanding irradiation stability, and significantly shorter analysis times. *The operating procedures are the same for SPM-9700HT Plus.

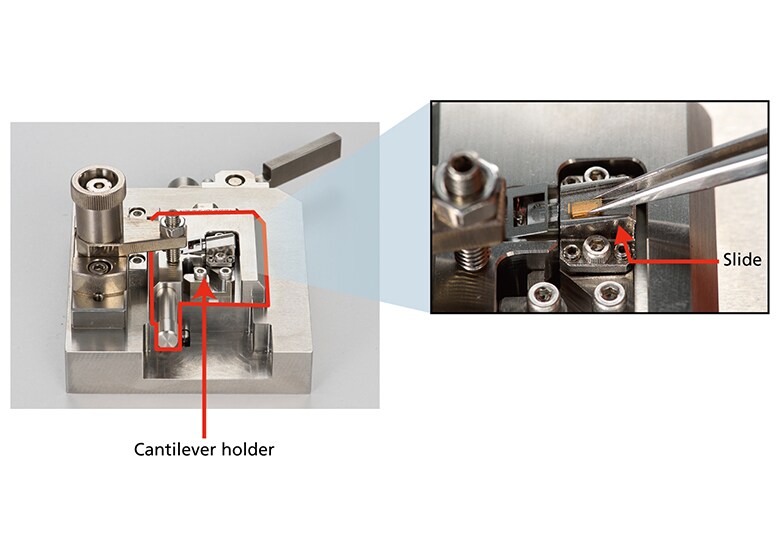

  • SPM-9700 Cantilever Mounting Jig

    • Surface Analysis

    This jig ensures easy and secure mounting of the cantilever. *The operating procedures are the same for SPM-9700HT Plus.

  • SPM-9700HT High-Throughput Scanner

    • Surface Analysis

    Due to the newly developed HT scanner that achieves a high-speed response and optimizing software and the design of the control system, acquisition of the image data is now available at a speed of less than 5 times or more(our ratio). The scanner can easily be replaced so existing scanners can be used. *The operating procedures are the same for SPM-9700HT Plus.
