Main model

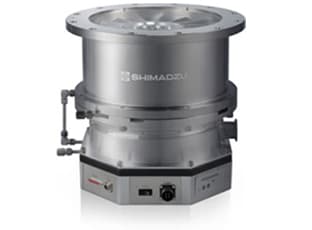

TMP-X05 series
Feature:
- Compact
About 15% reduction of the height dimension compared to the conventional integrated power supply TMP-V3304 - Energy-saving
About 15% reduction compared to the conventional separate power supply - Various communication networks and local operation
Equipped with temperature adjustment functionality, it enhances motor drive output, making it suitable for processes involving reaction products and corrosive gas.

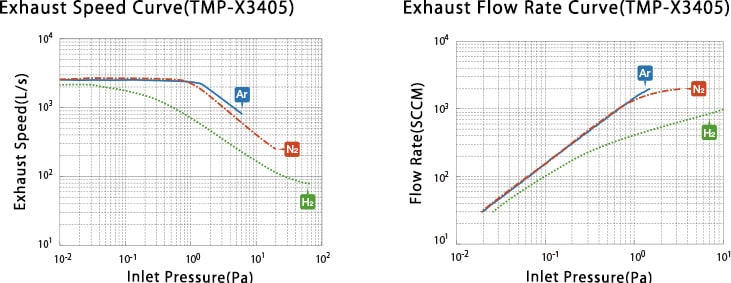

Improvement of exhaust performance
By applying rarefied gas flow analysis and structural analysis techniques, we have achieved high-efficiency exhaust and attained further improvement in exhaust performance.

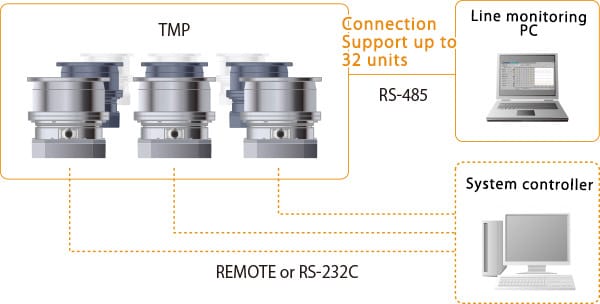

Network connection
Equipped with RS-232C and RS-485 compliant serial communication ports, it allows for the start/stop of the TMP, as well as monitoring of operating conditions and reading of operational record. With the optional monitoring software, up to 32 TMPs can be monitored from a single computer via RS-485 communication. A Profibus communication option is also available.
