MB150/MB150S Generic Magnetometer
The MB150 generic Magnetometer is a fluxgate magnetic sensor that measures micro-level magnetic fields with high sensitivity, and is available as the MB150 integrated model and MB150S discrete model with integrated or separate magnetism detector unit and control unit.

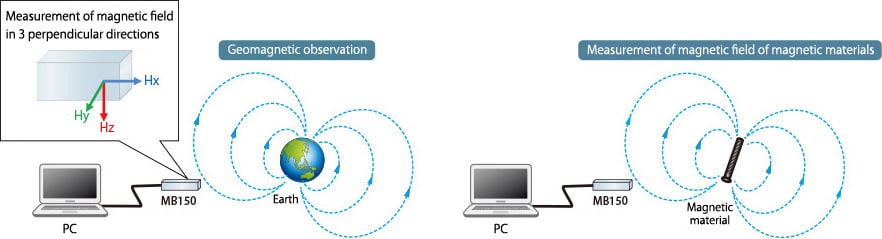

Applications
- Geomagnetic observation
- Measurement of magnetic field produced by magnetic materials (iron, nickel, etc.)
- Measurement of magnetic field produced by electrical current
Features
- Simultaneously measures magnetic field in 3 perpendicular directions.
- Wide measurement range of ±60,000 nT
- High resolution of 0.3 nT
- Digital output of measured values (TIA-422)
- Included software allows for easy display of measurements as waveforms, saving of data, and creation of csv files.
- Small and lightweight design*1 that allows for easy transport and use at any measurement site*1 Compared to our products.
- Shimadzu puts every single product through performance tests and only delivers safe and reliable products to customers that have met the performance criteria.
- Manufactured in Japan, with a comprehensive after-sales service
Specification/Configuration
| Measurement axis/axes | 3 perpendicular axes |
|---|---|
| Measurement range | ±60,000 nT on each axis |
| Measurement accuracy | ±2 % (along full measurement scale) |
| Intrinsic noise | ≤0.3 nTp-p (at DC to 1 Hz, for 2 minutes) |
| Output | TIA-422 |
| Operational temperature | 0 to +40 °C |
| Storage temperature | -20 to +60 °C |
| Power supply | 100 V AC, 50/60 Hz |
| Accessories | Cable, repeater, AC adapter, RS422-USB converter, storage case, instruction manual, magnetic waveform display software*2 |
*2 Magnetic waveform display software is compatible with Windows 7 and Windows 8.
