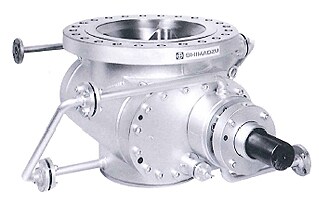

- Compact model with discharge pressures up to 7 MPaG.
- Attaches directly to bottom of vacuum chamber, with large-diameter port for pumping of high-viscosity liquids.
Specifications
| Discharge Pressure:2G | Max. 7 MPaG (70 kgf/cm2G) |
|---|---|
| Suction Pressure: | Full vacuum to 1 MPaG (10 kgf/cm2G) |
| Viscosity: | 0.1 - 20,000 Pa･s (1 to 200,000 poise) |
| Temperature: | Max. 360°C |
Model and Capacity
*As an example
| Model | Spec. volume (cm3/rev) |
Capacity (m3/day) |
Bore* | |
|---|---|---|---|---|
| Inlet | Outlet | |||
| 800 | 830 | 48~478 | 125A | 80A |
| 1000 | 1040 | 60~599 | 125A | 80A |
| 1600 | 1660 | 72~717 | 150A | 150A |
| 2000 | 2080 | 90~898 | 150A | 150A |
| 3150 | 3270 | 141~1412 | 400A/350A | 150A |
| 4000 | 4160 | 180~1797 | 400A | 200A |
| 6300 | 6600 | 238~2376 | 500A | 200A |
| 8000 | 8390 | 302~3020 | 600A/500A | 250A |
| 11000 | 11550 | 333~3326 | 700A/600A | 300A |
| 13000 | 13650 | 373~3734 | 700A/600A | 250A/200A |
| 15000 | 15880 | 411~4116 | 850A/800A | 300A/250A |
*The bore sizes above are only for reference and can be changed upon request.
*The capacities are only for reference.
These capacities change depending on the specification of the liquid and may not be satisfied under all conditions.
Please contact Shimadzu Industrial Systems for specific applications.
