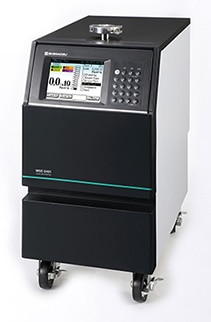

Shimadzu Dry-type Helium Leak DetectorMSE-2401

MSE-2401


This compact and transportable, general-purpose helium leak detector comes with a built-in contactless dry pump suitable for use in a clean room, it can be used for a variety of applications ranging from equipment maintenance to permanent installation such as OEM integration.



Specifications MSE-2401

Sensitivity 10-13～100Pa・m3/s［He］
Detecton gas Hydrogen/Helium gas
Analyzer tube 270̊ magnetic deflecting type (Flux density : 0.17T)
Yttria-coated iridium filament (2 pcs.)
Automatic tuning sensitivity calibration with temperature compensation
Vacuum System Molecular drag pump specially designed for leak detector (Structure of exhaust 70L/s)
Non-contact duty dry vacuum pump specially designed for leak detector (110L/min)
Pirani gage : Provided in two lines
Test Port Maximum pressure 1000Pa
Connection port : NW25KF
Helium Pumping Speed 3L/s
Weight Main unit : approx. 59kg
Power Requirements Specify one of the following when placing an order : Single phase 100/110/115/120/200/220/230/240VAC ±10%, 50/60Hz, 700VA
Input/output RS-232C interface
EXT-UNIT interface (external unit)

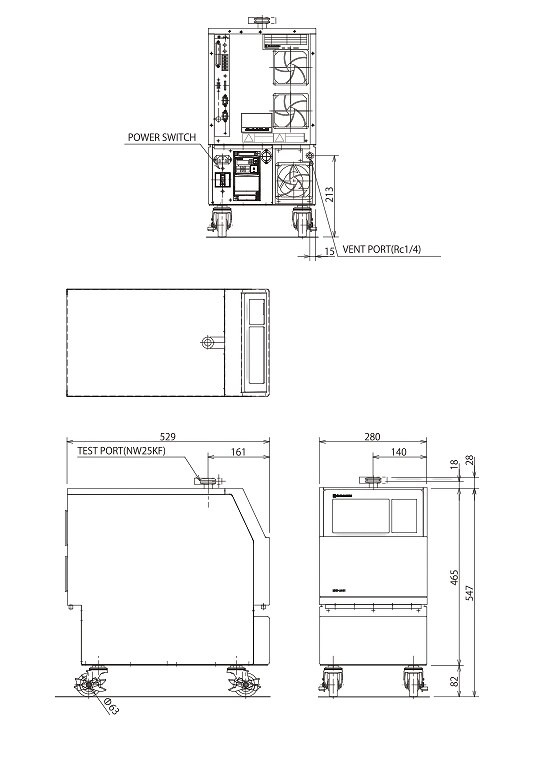

Dimensions MSE-2401
